Delivers complete visibility & control of industrial assets operating in remote areas

Versatile & rugged for mobile assets such as light-and-heavy-duty commercial vehicles, railcars, fishing vessel, heavy equipment and more

Configurable applications and custom scripts can accommodate basic or complex deployments, on land or at sea

Easy Integration

Rugged & Versatile

Valueable add-ons

Dimensions 12.6 cm x 12.6 cm x 4.9 cm

Electrical Input voltage: 9 to 32V; Load dump protection: +150V; SAE J1455 (Sec. 4.13)

Power consumption (typical average @12V DC, 22°C)

Environmental: Operating temperature: -40°C to +85°C ;  Dust and water ingress IP67

Options : Side or bottom connector variants



Data Sheet

Satellite service

Two-way, Global, IsatData Pro

External Interfaces

Inputs/outputs: 4 analog or digital in/out

Serial: RS-232; RS-485

Programming (pre-programmed with custom VMS script)

Certification

Regulatory: CE, FCC, IC, Anatel, RCM Mark, IEC 60945, C1D2, SRRC, IFT, ICASA, FFA;

Inmarsat Type Approval, IP67

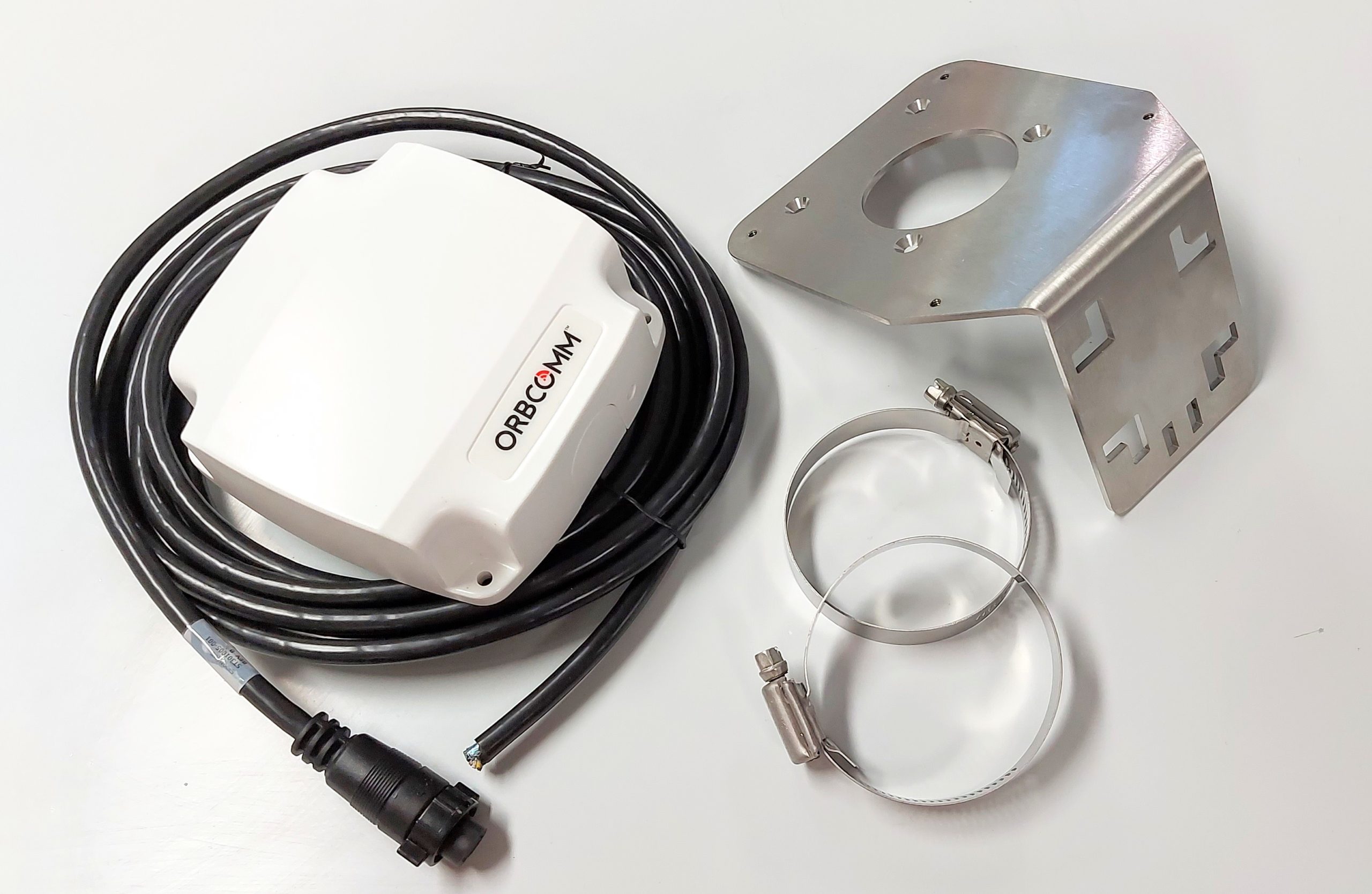

IDP ST6100 Order Enquiry
Required for programming
Options : mounting on roof of vessel (side connector) or pole mount/bracket (bottom connector)

Design9 supplies pre-programmed terminals for the AFMA VMS Compliance programme and we are the approved supplier for Victorian Fisheries Australia (VFA)

Having VMS devices installed on commercial fishing vessels contributes to ensuring the sustainability of Australia’s marine resources.

VMS devices will be used for the purpose of providing the AFMA or VFA with information on vessel position, bearing and speed.
